Other sites visited today: Tonzi
Phenocam link: Searching...

Tonzi: 2007-04-13 09:30:00 (DOY 103)
Author: Siyan Ma
Others: Xingyuan, Jessica, Youngryel


When: Date: 4/13/2007 , Day: 103 , Watch Time: 9:30am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Xingyuan, Jessica, and Youngryel
Weather: Sunny, partially cloudy, nice breezle
Phenology: Vaira grass is in the seeding stage, and Tonzi grass looks taller but its development is slower than Vaira grass about one stage, within the stem increasing stage. See many flowers in purple, yellow, or white (broad leaf). See a lot of clovers at Vaira. Going to separate cloves from grasses and the difference in leaf area and dry weight.
Summary
  1. The EC system worked well at the three sites. No data missing. Data are downloaded.
  2. RRR was stuck at the charging station, but the machine still kept going forward. The tracks were damaged. Power is disconnected now.
  3. CO2 profile system worked well.
  4. Couldn’t measure soil moisture with TDR because no see TDR at lab when loading
  5. read the dendrometers. Many old dendrometers are out of range now. See new dendrometers have been installed by John’t group‌ Don’t know how to read them.
  6. Youngryel took spectrometer measurements and site pictures.
  7. Xingyuan worked on her sapflow system
  8. Jessica took Ac measurement

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.7 v; 14.7 amps; 2.8 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Time
09:06

Path/File name
D:\Data\V07_ 103 .flx
D:\Data\VR07 .raw


mean
std

mean
std

w
0.2
0.343
Ts
16.8
0.66

u
-1.44
0.755
H2O
0.2
0.101

v
1.34
0.597
CO2
1.95
0.045




Tc
0.661
0.045
  1. downloaded data
  2. check the fans of air temp. and relative humidity sensors at Vaira. OK.
  3. Check MD-9 system connections OK.
  4. Check levels of Radiation sensors, clear up surfaces. OK

9. Closed gate and set up fence. Yes.

Tonzi_Tower Site12

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 14.0 v; 0.0 amps; 5.5 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File name
D:\Data\T07_103 .flx
D:\Data\TW07 .raw


mean
std

mean
std

w
-0.15
1.26
Ts
17.2
0.73

u
1.44
1.26
H2O
1.76
0.07

v
2.62
1.30
CO2
1.61
0.03
  1. downloaded data
  2. check the fans of air temp. and relative humidity sensors on the tower and the floor. OK.
  3. Check calibration cylinders;

CO2 1300 psig; flow 20 psi.
N2 1000 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ Yes.
  1. close gate and set up fence. Yes.

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.7 v; 9.3 amps; 1.7 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File name
D:\Data\F07_103 .flx
D:\Data\FL07 .raw


mean
std

mean
std

w
0.09
0.22
Ts
18.2
0.69

u
-1.22
0.41
H2O
2.3
0.16

v
-0.14
0.59
CO2
1.78
0.04
  1. downloaded data
  2. Check MD-9 system connections OK.

CR23X3 – floor-Met
CR23X5 – soil CO2 profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO2 profile
CR10X8 – wind profile
  1. Soil CO2 profile

Reading from datalogger

Panel temp
23.1


Battery voltage
13.3


CO2E_1
785
TCE_1
21.1
CO2W_1
921
TCW_1
16.5

CO2E_2
1120
TCE_2
22.8
CO2W_2
1204
TCW_2
15.2

CO2E_3
1698
TCE_3
17.2
CO2W_3
1778
TCW_3
15.2

CO2E_4
2287
TCE_4
14.5
CO2W_4
3056
TCW_4
15.2

Reading from panels of analyzers

depth
Open
order
depth
Tree
order

2cm (1%)
1590
1
2cm (1%)
1760
1

4cm
2290
2
4cm
6060
4

8cm
3430
3
8cm
2250
2

16cm
4620
4
16cm
0.68%
3
  1. Close gate and set up fence. Yes.


Tonzi



Dendrometer






Date
Day
Tag #
Reading (cm)

4/13/2007
103
71
24.7



72
23.6



77
Broken



78
Broken



79
23.4



245
22.6



248
25.0



250
21.7



255
21.9



‌252‌
missing



102
Broken




Sample sheet for MIBA

Sample vial
What

MIBA-US-01.178
Leave 1

MIBA-US-01. 179
Leave 2

MIBA-US-01. 180
Grass 1

MIBA-US-01. 181
Grass 2

MIBA-US-01. 182
Soil in 10 cm

MIBA-US-01. 183
Stem 1

MIBA-US-01. 184
Stem 2

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

21 photos found

Reference 1 grass in Tonzi ranch
Reference 1 grass in Tonzi ranch

Reference 2 grass in Tonzi ranch
Reference 2 grass in Tonzi ranch

A flower in Tonzi ranch
A flower in Tonzi ranch

Flowers in Tonzi ranch
Flowers in Tonzi ranch

Dramatically grown leaves during 2 weeks in Tonzi ranch
Dramatically grown leaves during 2 weeks in Tonzi ranch

Leaves in Tonzi ranch
Leaves in Tonzi ranch

Tram system did not work normally
Tram system did not work normally

Tonzi flux tower
Tonzi flux tower

Tram system from the top of flux tower
Tram system from the top of flux tower

Jessica
Jessica's trail

From the top of flux tower
From the top of flux tower

Reference 2 grass
Reference 2 grass

View of oaks and pines from tower top
View of oaks and pines from tower top

Green!
Green!

Reference 1 grass
Reference 1 grass

From the top of flux tower
From the top of flux tower

From the top of flux tower
From the top of flux tower

Me!
Me!

Why Siyan put on the cap?
Why Siyan put on the cap?

Pyranometer and net radiometer
Pyranometer and net radiometer

Tram exerted to move forward at the end of the rail, making the rail grooved. Siyan turned off the power
Tram exerted to move forward at the end of the rail, making the rail grooved. Siyan turned off the power

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

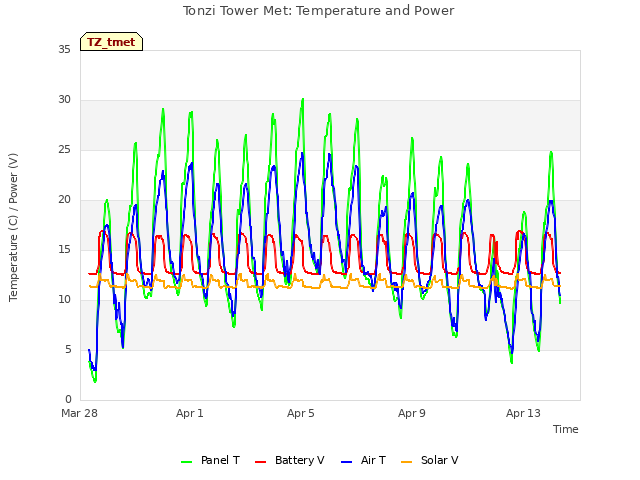

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

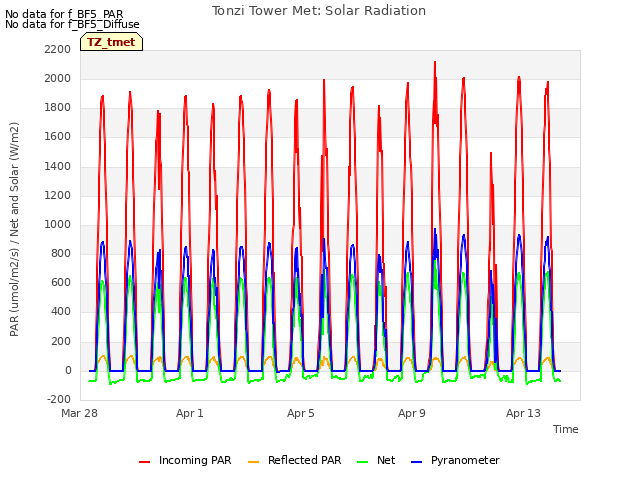

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

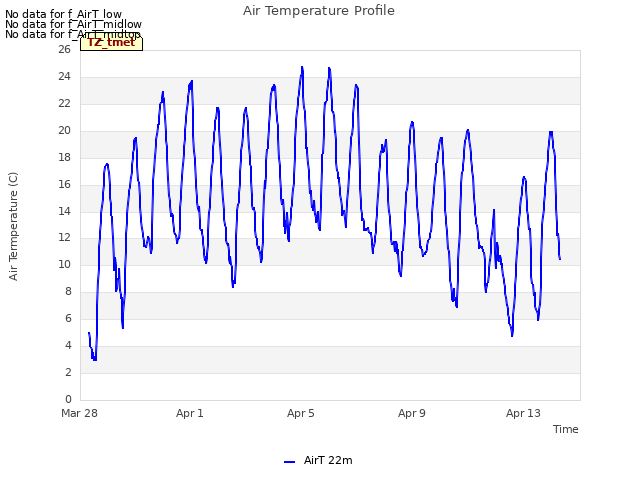

Explore the graph:Air Temperature Profile in a new window

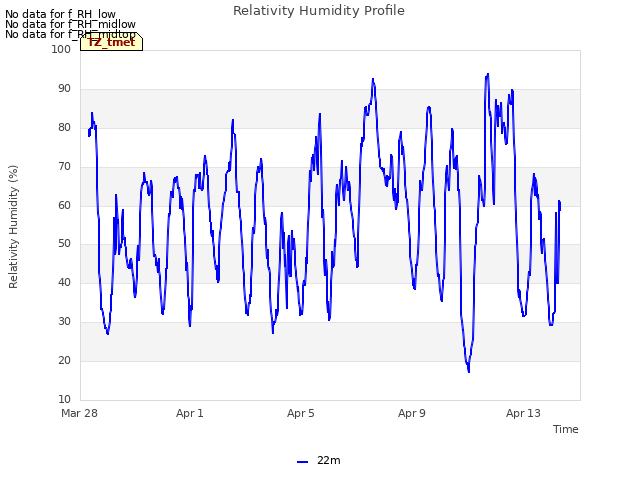

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

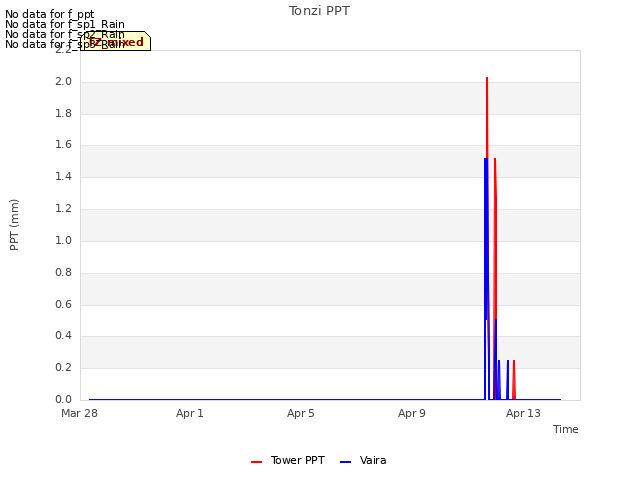

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

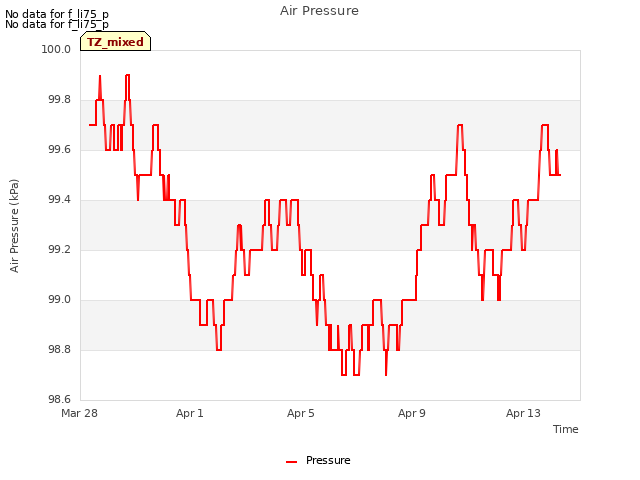

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

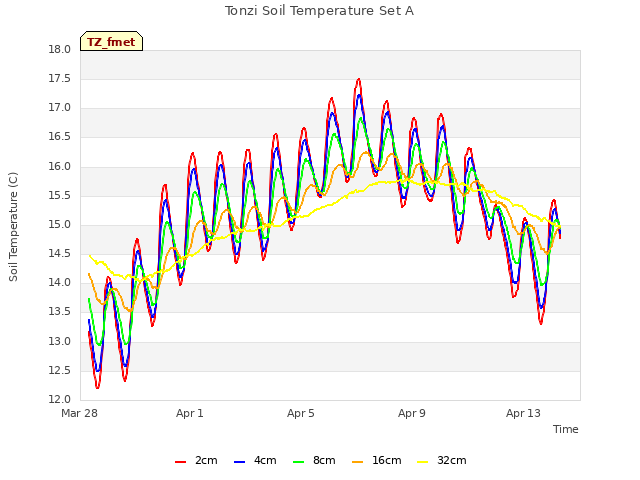

Explore the graph:Tonzi Soil Temperature Set A in a new window

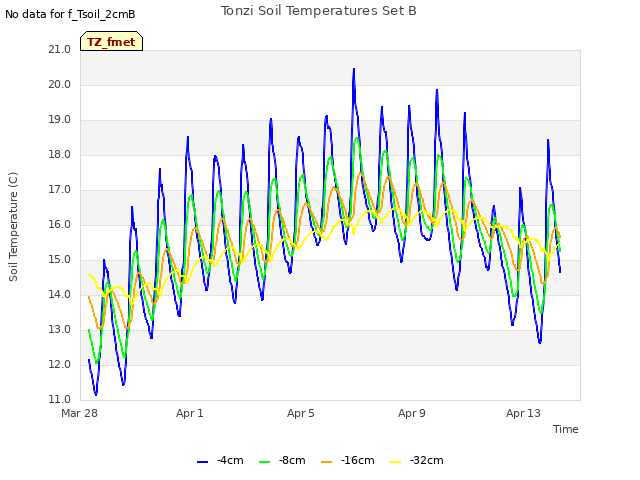

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
3 TZ_co2prof graphs found

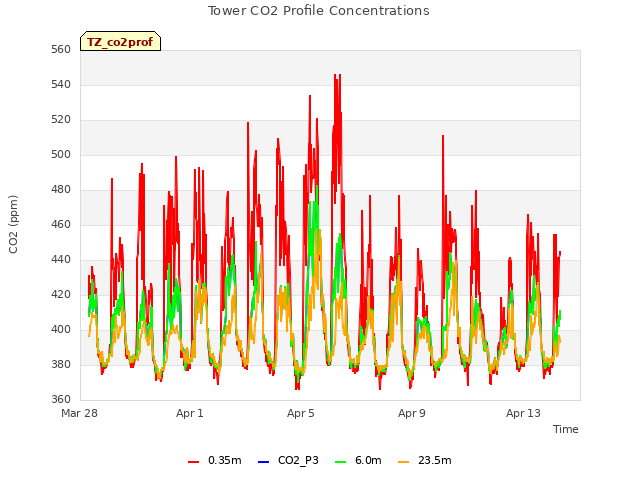

Explore the graph:Tower CO2 Profile Concentrations in a new window

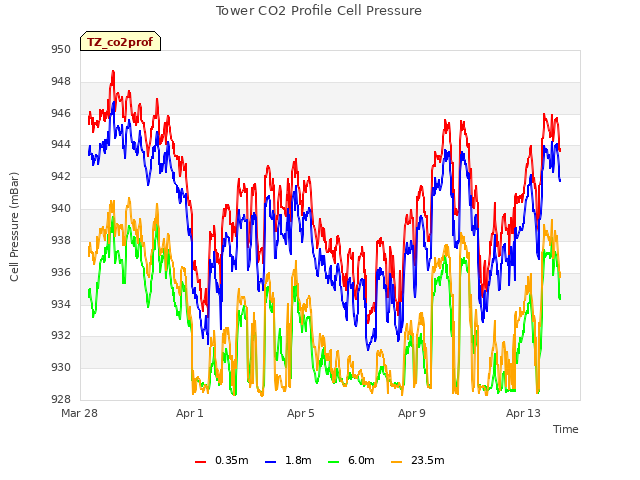

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

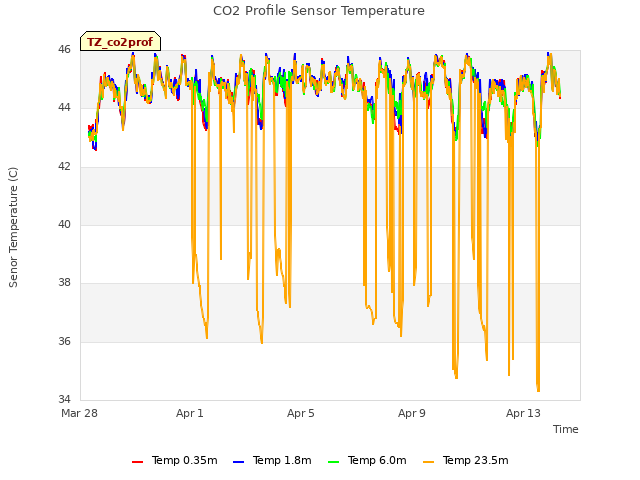

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
1 TZ_windprof graphs found

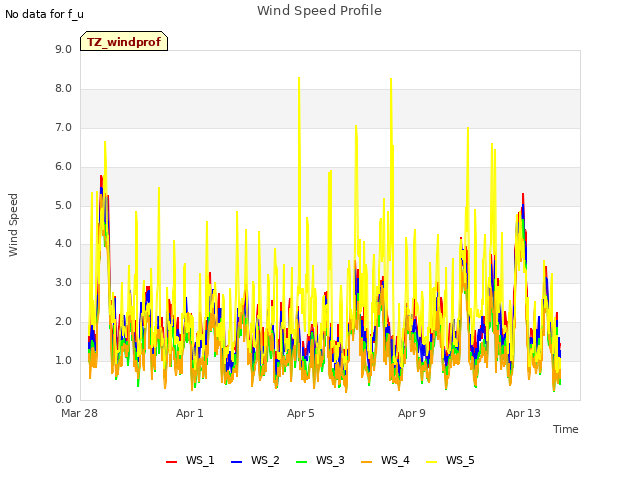

Explore the graph:Wind Speed Profile in a new window

No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

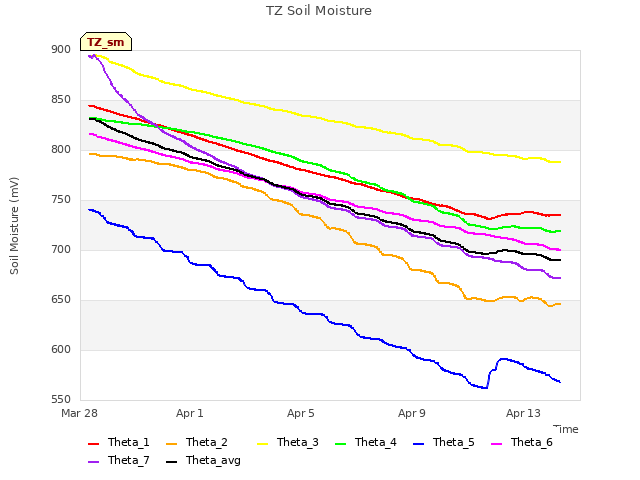

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

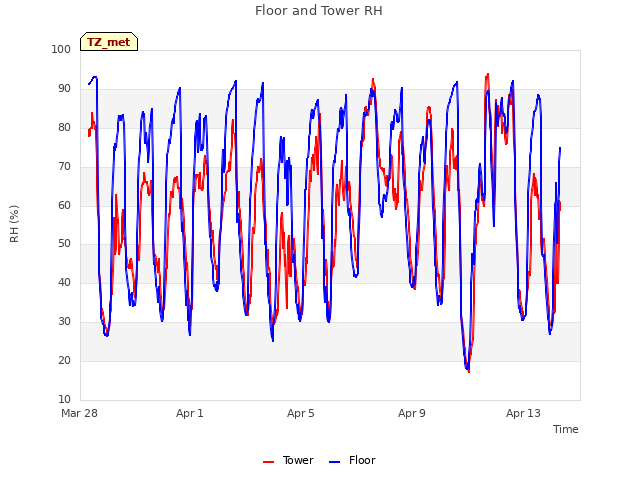

Explore the graph:Floor and Tower RH in a new window
