Field Notes
<--2001-04-27 09:00:00 | 2001-05-04 09:00:00-->Other sites visited today: Vaira
Tonzi/Vaira: 2001-05-03 09:00:00 (DOY 123)
Author: LiuKang Xu
Others:
Summary: Forgot tripod for 6400, standard data collection
| On 5/3/01 d123 9:00 arrived at Tonzi Ranch, strong wind, hot and low RH. Forgot bring the tripod, can not do the Li-Cor 6400 measurements. Download the floor system data, including raw, met, soil and sap flow data. system running properly. took 8 grass LAI samples (4 under tress and 4 open space). Photovoltaic controller at the floor system reading was 11.7V, 1.4 A and 2.6 A. The voltage is kind of low, I noticed that solar panels are shaded before 11:00 PST and after 3:00 pm. Only 4 hr for those panel got the sun light. I Talked to Ted last Fri when we were at the field, he said we should move the panel 20 feet south. Vaira Ranch Arrive at 11:20 PST. Download the raw data, met and soil data. All instruments running properly. |
0 photos found
16 sets found
No data found for TZ_Fenergy.
No data found for TZ_tmet.
No data found for TZ_soilco2.
Can't check TZ_mixed

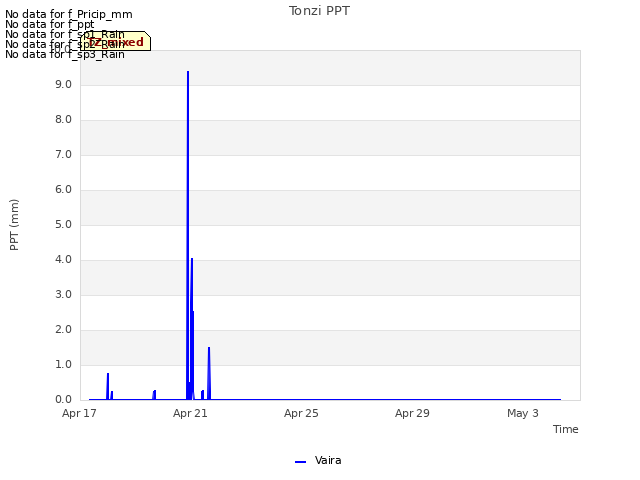

3 TZ_mixed graphs found
No data found for TZ_fflux.

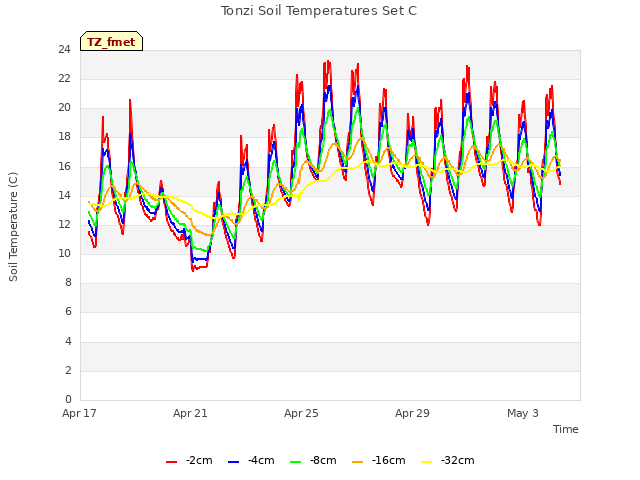

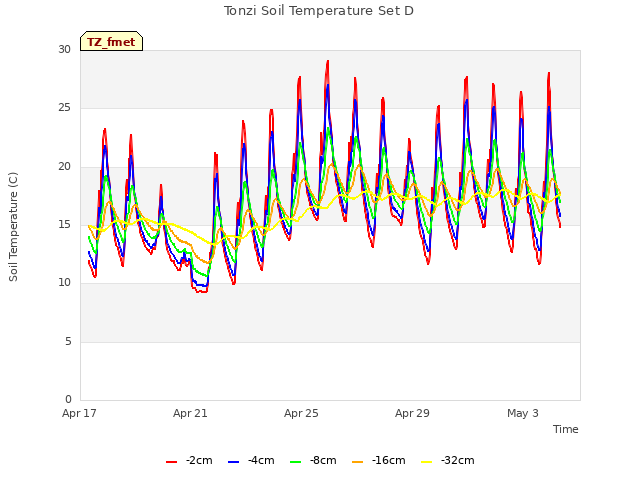

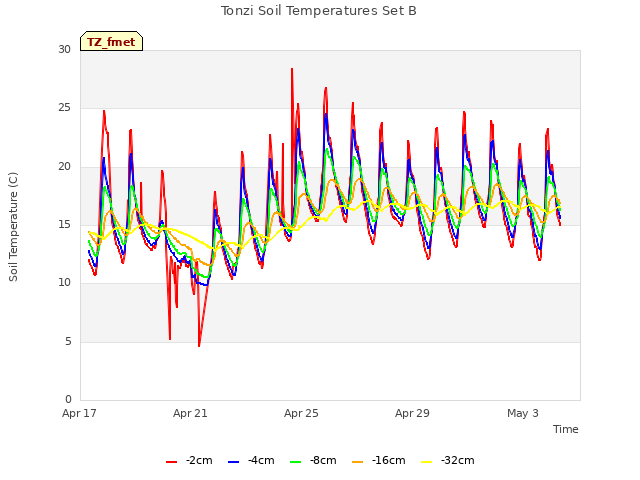

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

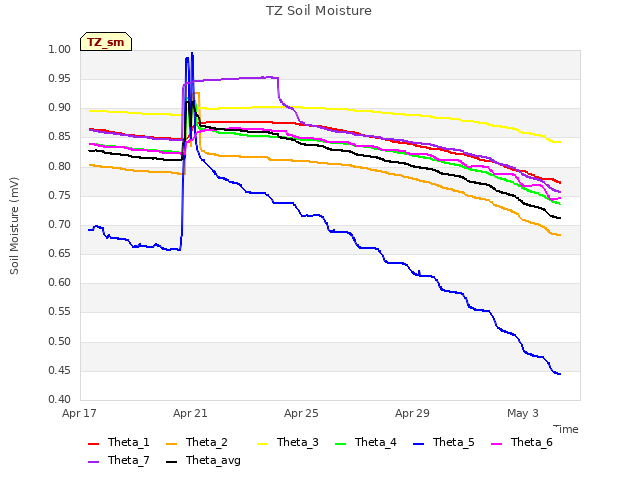

2 TZ_sm graphs found

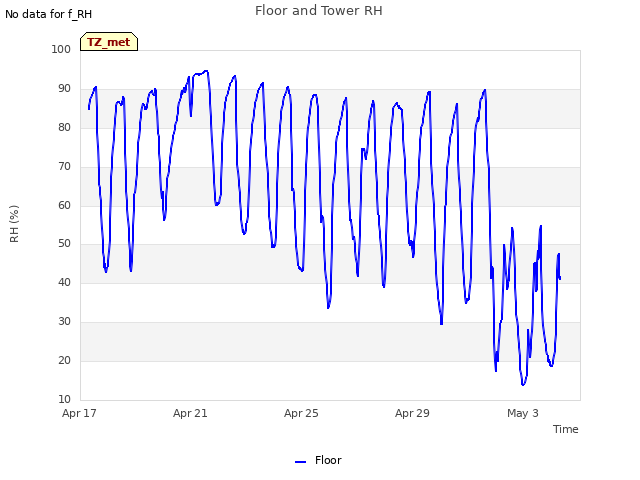

Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
