Field Notes

<--2008-03-11 12:00:00 | 2008-04-07 10:30:00-->
Phenocam link: Searching...

Sherman Island: 2008-03-25 13:00:00 (DOY 85)
Author: Dennis Baldocchi
Others: Kate Saad

Summary: Took spectral reflectance measurements and soil moisture measurements; downloaded data from Sherman Island & from laser.

Sherman Island - Methane Study

Date: March 25, 2008

Day: 85

Standard Time in: 1300 Out: 1500

Who: ddb and Kate Saad

Weather: clear day, high clouds, brisk winds from west, mild temperatures

Phenology: pepper weed growing and active. Cows in far paddock

Tasks

  1. check and download data at Sherman Island
  2. download data from laser
  3. Take soil moisture
  4. other: -------------

Check list

  1. Fence and gate power: ok
  2. Datalogger Solar Panel and Batteries: ok
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

1320

Path/File name

D:\Data\SI08 .raw

mean

std

mean

std

w

.41

Ts

17.9

u

6.08

H2O

2.95

v

7.7

CO2

1.28

CH4

1.87

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

Cell Pressure – near 159

144

Cell Temperature

24.72

Mirror time

12.8

Sample rate

1 HZ!! Changed to 10 Hz

Methane low flow put back in high flow !

High flow

Pump status

ok

Filter Status

ok

Water traps

ok

Temperature in box was 72 F.

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

TC 1 and TC 3 set are inf.

Pressure 102.19

Ta+ 18.88

RH 63.8

Other Notes:

Kate took spectral reflectance measurements and ddb took soil moisture measurements.

Excellent ramps for q and C on flux data

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

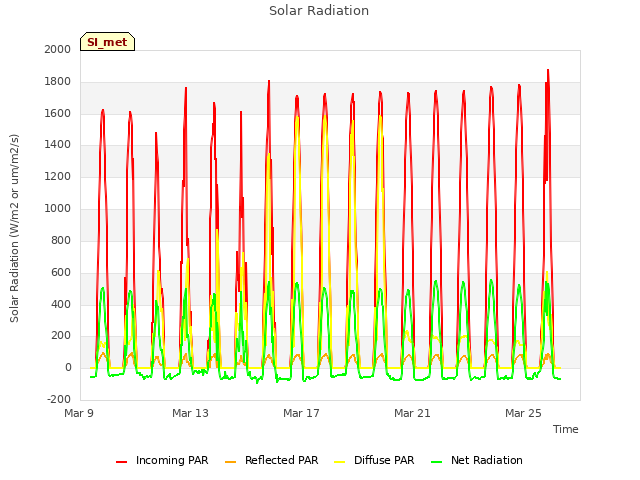

Explore the graph:Solar Radiation in a new window

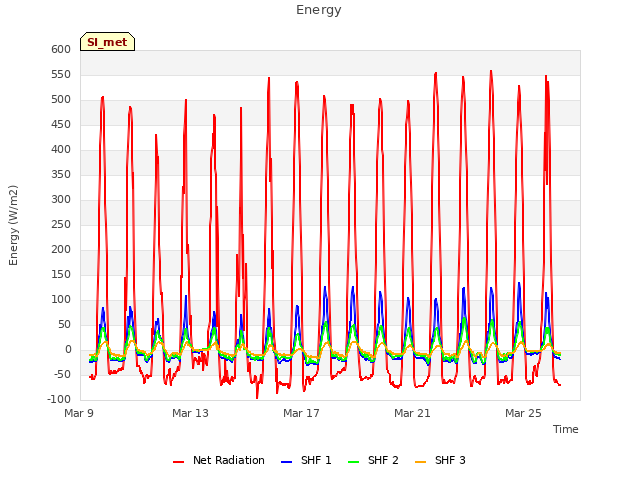

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

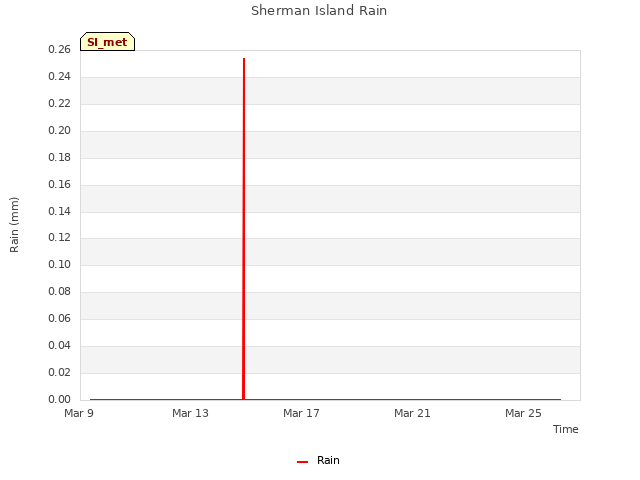

Explore the graph:Sherman Island Rain in a new window

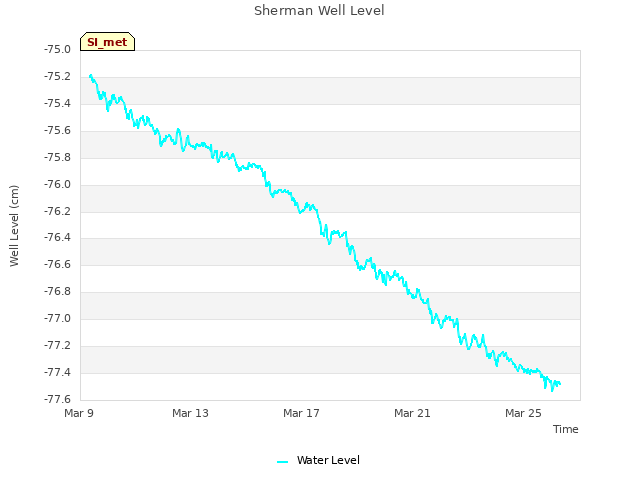

Explore the graph:Sherman Well Level in a new window

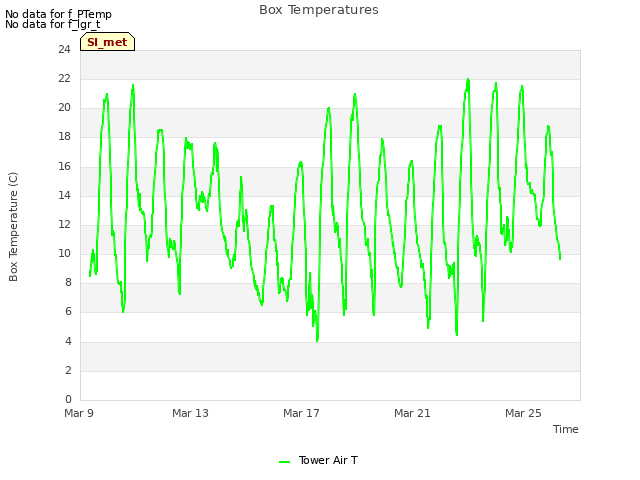

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

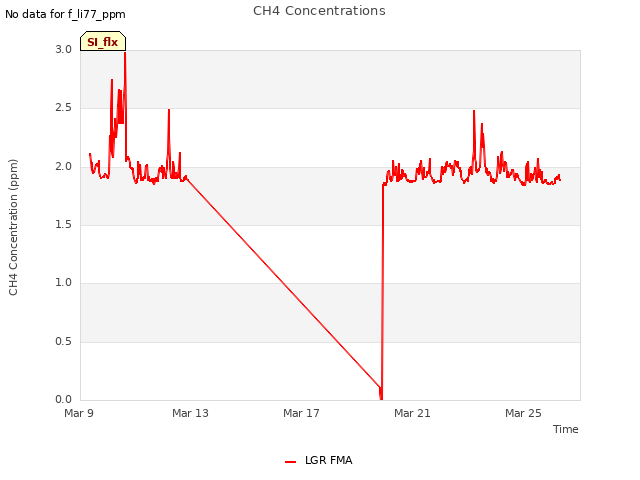

Explore the graph:CH4 Concentrations in a new window

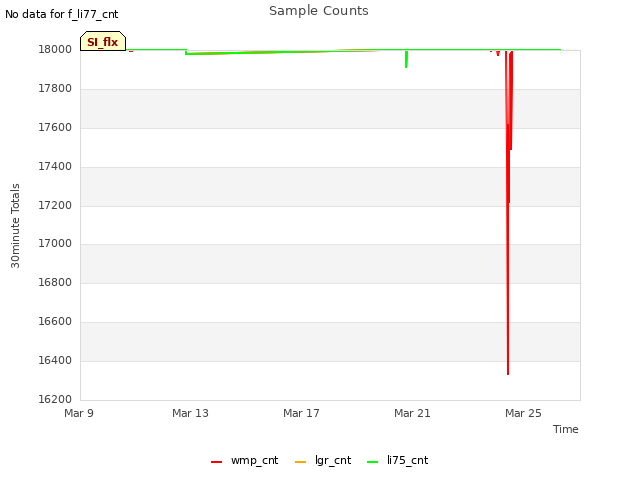

Explore the graph:Sample Counts in a new window

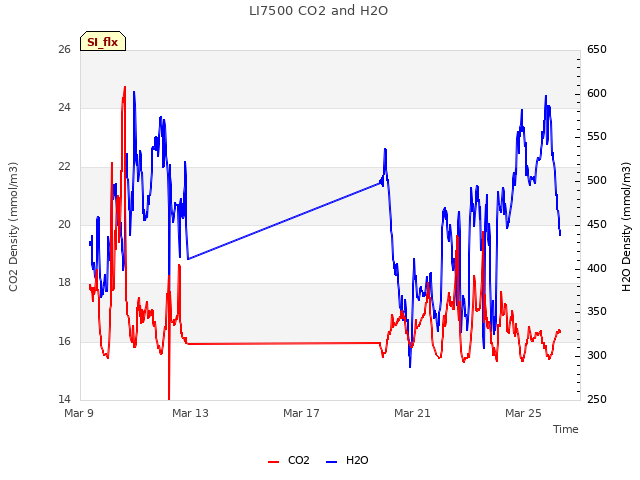

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
